Double MOS protection plate 26650 battery with base for lithium
With USB: no
Brand Name: ZUCZUG
Compatible Brand/Model: None
Model Number: 26650
A set of the product from the sale, the price for a set of price, thank you
Brand: Yu Xing
26650 lithium battery universal dual MOS protection plate lithium battery protection board

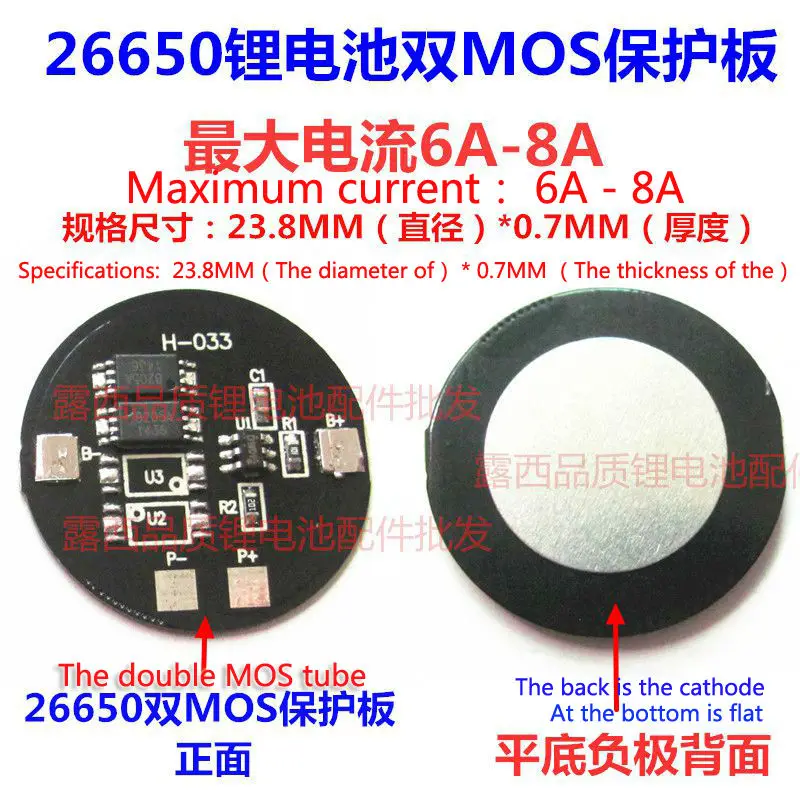

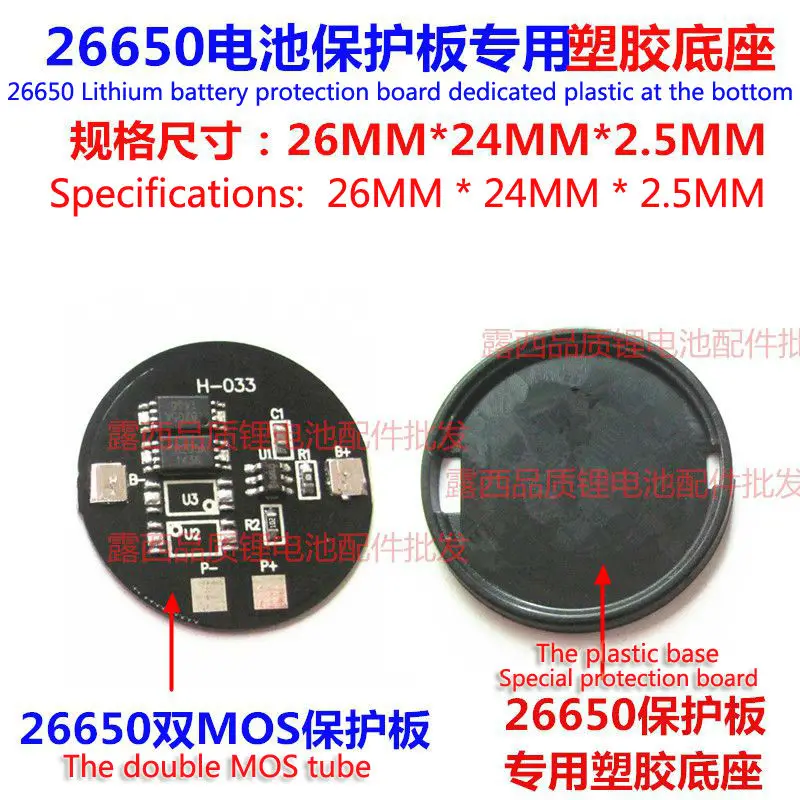

Size: 23.8MM (diameter) *0.7MM (thickness) (black hard apron base with 24MM)
The protective plate uses the Taiwan lithium rich lithium polymer rechargeable battery protection IC.
Protection board over charge over discharge voltage 2.75V-3.7V protection plate maximum current 5A-6A, continuous working current 3.5A--4A
(1) built in high precision voltage detection circuit
(2) the terminal of the charger is connected with a high voltage resistant device
(3) built in three section over current detection circuit (over current 1, over current 2, load short circuit)
(4) the charge and discharge of the battery can be controlled through the MOS tube
(5) a wide range of working temperature: 40 degrees C ~ +50 ~ C
(6) low consumption current.
1 string lithium nickel cobalt manganese, cobalt acid lithium manganate lithium ion rechargeable battery.
1 series lithium polymer rechargeable batteries.

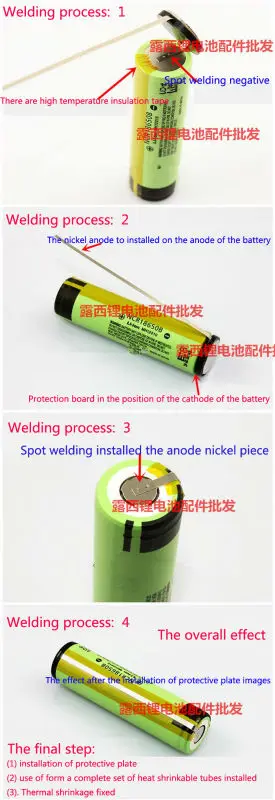

Welding point description:
B+ positive electrode.
B - connect battery cathode.
P+ charge / discharge end positive electrode (charge end / discharge end sharing).
P- charge / discharge end negative (charge / discharge end).
The back of the board (steel) is P-

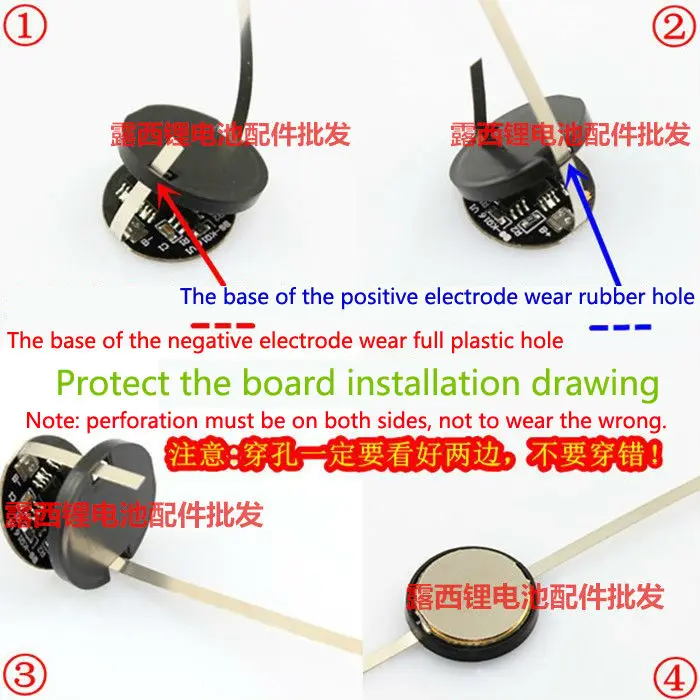

Install the sample diagram is as follows:
